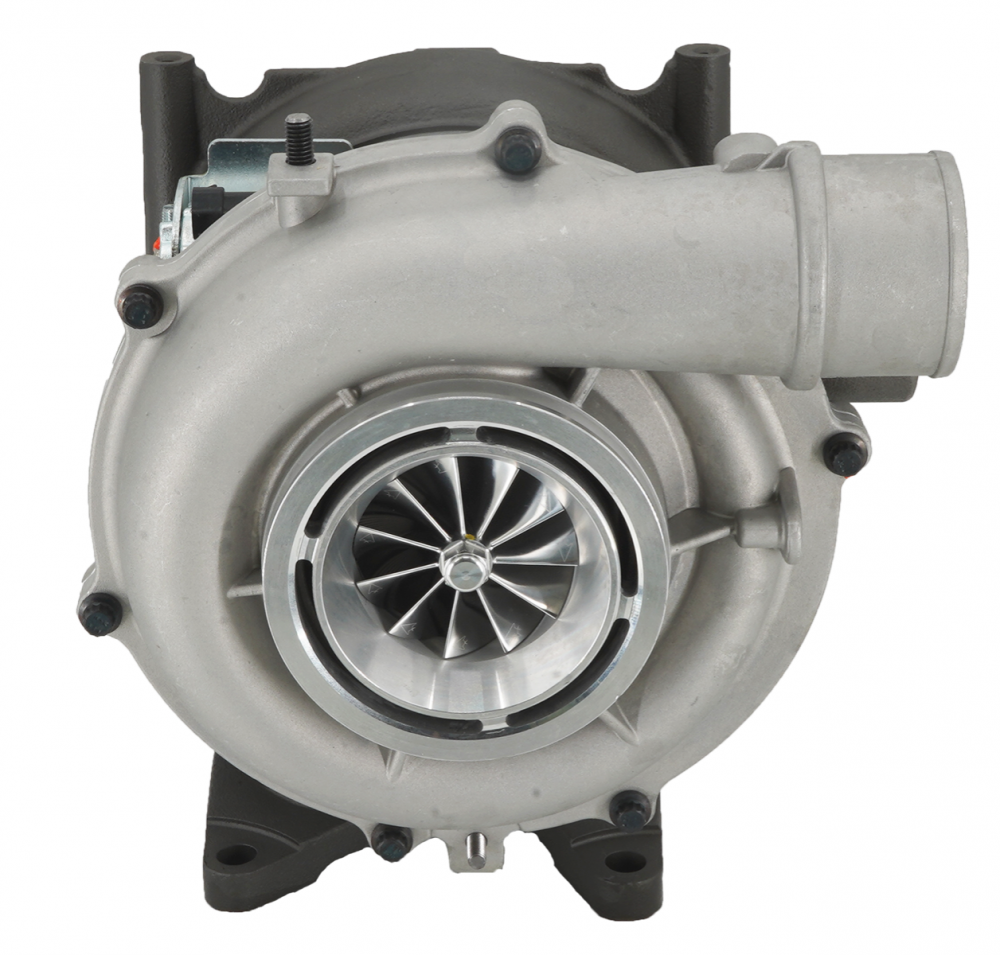

DuramaxTuner 2011-2016 LML Stealth 67 Mach 2 Turbo
DuramaxTuner 2011-2016 LML Stealth 67 Mach 2 Turbo
LML STEALTH MACH 2 (67) TURBO
-
Dyno proven to support up to 800rwhp
- Quick spool-up provides great drivability
-
Lower average EGTs and better overall EGT control
-
Upgraded billet stainless VGT vanes (HFV)
- Extremely wide power and torque curve
-
Better durability than a stock turbo
-
Loud turbo whistle from 10-blade Stealth turbine
-
Superior boost to drive pressure ratio compared to stock
-
Direct Bolt-on no fabrication needed
-
No risk of surge even when towing heavy loads
DESCRIPTION
The LML Stealth Mach 2 (67mm) is a stock appearing, direct replacement for your 2011, 2012, 2013, 2014, 2015, and 2016 LML Duramax. The upgraded billet compressor & extra-large turbine wheel are perfectly matched to our custom-cut compressor cover and exhaust housing.
This turbocharger features our exclusive HFV technology! HFV or High Flow Vane technology is our proprietary customization of the variable vane cage and nozzle ring assembly. This advancement allows the use of a larger turbine wheel for maximum high-load efficiency. Stealth turbos featuring our HFV upgrade are capable of producing more power, spooling up quicker, and managing EGTs better than those limited with factory nozzle rings.
Your truck is going to experience increased performance across a wide operating range due to our HFV assembly, oversized turbine wheel, and billet compressor wheel. Built from brand new parts, this turbocharger won’t require a core charge. The optional actuator is pre-calibrated and the entire turbo comes ready for installation. You should strongly consider custom tuning to go with this turbocharger upgrade.
FEATURES
67mm Air Grabber Compressor Wheel
- Air flow to support 800rwhp (dynojet)
- Supports 650rwhp with emissions in-tact and tuning
- 11-blade design provides a wide efficacy range
- Peak weight to efficiency optimization
- Featuring the latest advancements in compressor wheel technology
- Air Grabber Technology for even more additional airflow
- Made out of aerospace-grade billet aluminum
Beast Wheel™ Turbine Wheel
- 10% larger wheel for increased airflow and lower EGTs
- Noticeable turbo whistle
- Custom 10-blade design provides improved flow characteristics over stock
- Made out of high-quality Inconel 718
- Better durability than stock
HFV Technology (High Flow Vanes)
- Designed taller for less turbine nozzle restriction
- Designed wider for improved exhaust-flow geometry
- Still provides quick spool-up
- Machined out of high quality billet 310 stainless steel
Exhaust Housing
- Machine-ported up-pipe inlets for improved flow
- Machine-ported down pipe opening for improved flow
Other Upgrades
- 360˚ Thrust bearing
- Heavy-duty journal bearings
Stealth Turbo Benefits
- Absolutely no core charges
- Brand new parts and accessories
- 1-year warranty on all of our turbos
- Extended warranties available
- Live on-site customer support team here to help
This Turbo is Designed for you...
- Daily drive your truck
- Reliability and Performance are your top priorities
- Tow with your truck
- Prefer to simply swap your old turbo out for a new one
- Want more power when you need it, but still have excellent street manners!
Fitment Specifications |
|||||||||
Year |
OEM |
Models |
OEM Part #(s) |
||||||
2011-2016 |
Chevy |
2500, 3500 |
§ 848212-5002S § 12642314 § 12642129 § 800799-0002 § 800799-0003 § GT3788VA § Garret 3788 § |
||||||
2011-2016 |
GMC |
2500, 3500 |
|||||||
Measurement Specifications |
|||||||||
Compressor - Wheel Inducer |
Compressor - Inducer Bore |
Compressor - Wheel Blade Count |
Turbine - Wheel Exducer |
Turbine - Wheel Inducer |
Turbine - Wheel Blade Count |
Peak Power |
|||
67mm |
68mm |
6 + 6 |
71mm |
78mm |
10 |
800 RWHP |
Maximum Recommended Boost Pressure (psi) for LML Stealth 67G2 |
|||
Altitude (ft) |
Barometric Pressure (psi) |
Baro (inHG) |
Max Safe Boost (psi) |
-1000 |
15.2 |
31.02 |
41.8 |
0 |
14.7 |
29.88 |
40.4 |
1000 |
14.2 |
28.86 |
39.1 |
2000 |
13.7 |
27.84 |
37.7 |
3000 |
13.2 |
26.83 |
36.3 |
4000 |
12.7 |
25.81 |
34.9 |
5000 |
12.2 |
24.8 |
33.6 |
WARRANTY INFORMATION
All Stealth Series turbos are covered by our Unlimited Mile, 1-year manufacturer warranty for quality and craftsmanship. For warranty inquiries and specifics please email us at sales@duramaxtuner.com
