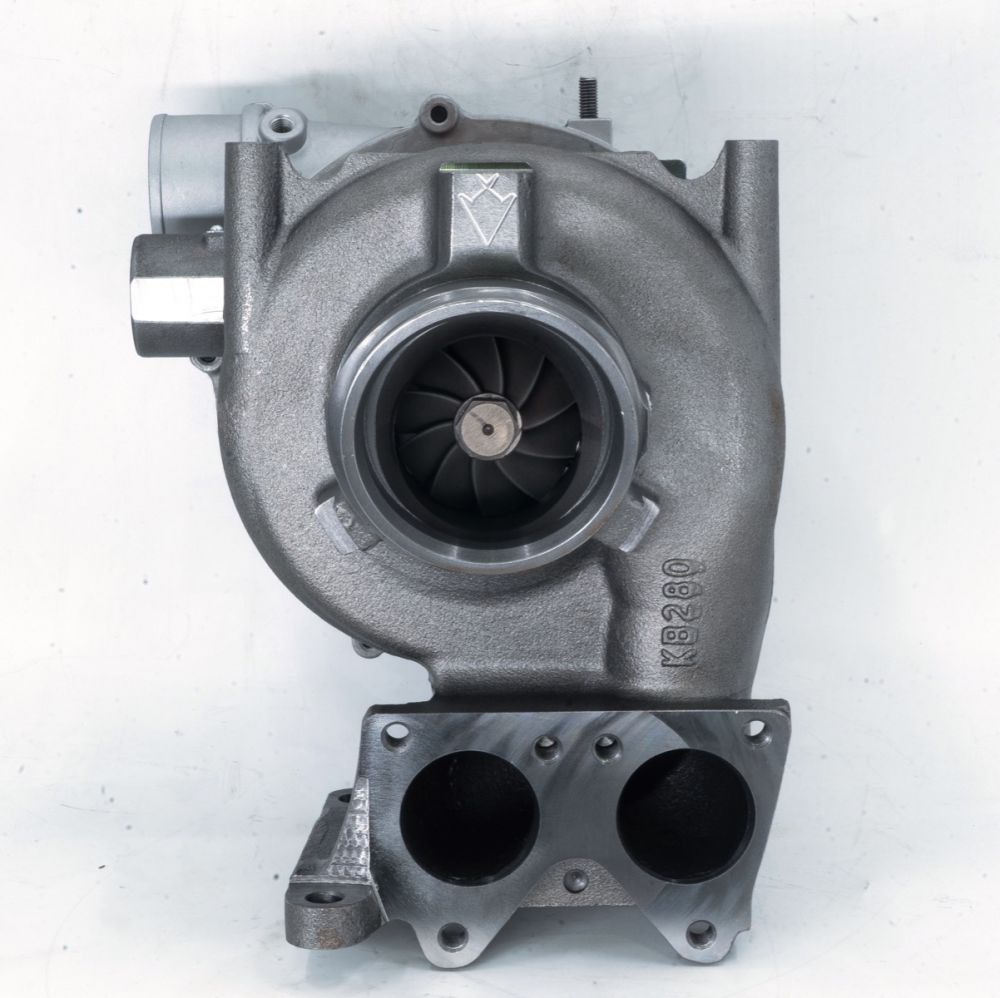

DuramaxTuner 2011-2016 LML Stealth 64 Mach 1 Turbo

DuramaxTuner 2011-2016 LML Stealth 64 Mach 1 Turbo

Regular price $3,484.99 CAD
Regular price Sale price $3,484.99 CAD
Sale Sold out
Shipping calculated at checkout.

LML STEALTH MACH 1 (64) TURBO

  • Proven to support up to 650 RWHP with supporting modifications

  • Up to 600rwhp with stock emissions controls and tuning
  • Lightning fast spool-up and immediate throttle response

  • Designed for maximum towing performance

  • Lower average EGTs and better overall EGT control

  • Superior drive to boost pressure ratio compared to stock

  • Pronounced turbo whistle from 10-blade turbine

  • Zero surge even when towing heavy loads

  • Brand New Parts - No core charges

DESCRIPTION

Your 2011-2016 LML Duramax will run better than ever before with the LML Stealth Mach 1 (64) Turbo. While capable of up to 650+ RWHP, this turbo is actually designed for maximum spool up and towing capabilities. The billet compressor wheel and custom spec'd turbine wheel are matched together perfectly for a daily driven truck that's going to get used in the real world.

You'll love the unique Stealth sound almost as much as the added performance. This turbo is a direct replacement, with no added piping kits needed, for your 2011, 2012, 2013, 2014, 2015, or 2016, 6.6L LML Duramax turbocharger.

The unique advantage of having our tuning experts work on this turbocharger design can’t be understated. DuramaxTuner’s experience with the particulars of how the LML Duramax platform responds to tuning adjustments and airflow changes was a crucial component in building you the perfect turbo upgrade.

FEATURES



64mm Air Grabber Compressor Wheel

  • Air flow to support 650rwhp (dynojet)
  • Supports 600rwhp with emissions in-tact and tuning
  • 11-blade extended tip design provides a wide efficacy range
  • Peak weight to efficiency optimization
  • Featuring the latest advancements in compressor wheel technology
  • Air Grabber Technology for even more additional airflow
  • Made out of aerospace-grade billet aluminum


Beast Wheel™ Turbine Wheel

  • 8% larger wheel for increased airflow and lower EGTs
  • Noticeable turbo whistle
  • Custom 10-blade design provides improved flow characteristics over stock
  • Made out of high-quality Inconel 718
  • Better durability than stock



Exhaust Housing

  • Machine-ported up-pipe inlets for improved flow
  • Machine-ported down pipe opening for improved flow


Other Upgrades

  • 360˚ Thrust bearing
  • Heavy-duty journal bearings


Stealth Turbo Benefits

  • Absolutely no core charges
  • Brand new parts and accessories
  • 1-year warranty on all of our turbos
  • Extended warranties available
  • Live on-site customer support team here to help


This Turbo is Designed for you...

  • Daily drive your truck
  • Reliability and Performance are your top priorities
  • Tow with your truck
  • Prefer to simply swap your old turbo out for a new one
  • Want more power when you need it, but still have excellent street manners!

Fitment Specifications

Year

OEM

Models

OEM Part #(s)

2011-2016

Chevy

2500, 3500

§  848212-5002S

§  12642314

§  12642129

§  800799-0002

§  800799-0003

§  GT3788VA

§  Garret 3788



2011-2016

GMC

2500, 3500

Measurement Specifications

Compressor -    Wheel Inducer

Compressor - Inducer Bore

Compressor -  Wheel  Blade Count

Turbine - Wheel Exducer

Turbine - Wheel Inducer

Turbine - Wheel Blade Count

Peak Power

63mm

64mm

11 blade

67mm

73mm

10

650 RWHP

Maximum Recommended Boost Pressure (psi) for LML Stealth 64

 Altitude (ft)

Barometric Pressure (psi)

Baro (inHG)

Max Safe Boost (psi)

-1000

15.2

31.02

38.0

0

14.7

29.88

36.8

1000

14.2

28.86

35.5

2000

13.7

27.84

34.3

3000

13.2

26.83

33.0

4000

12.7

25.81

31.8

5000

12.2

24.8

30.5



WARRANTY INFORMATION

All Stealth Series turbos are covered by our Unlimited Mile, 1-year manufacturer warranty for quality and craftsmanship. For warranty inquiries and specifics please email us at sales@duramaxtuner.com
